A floor standing coil winding machine

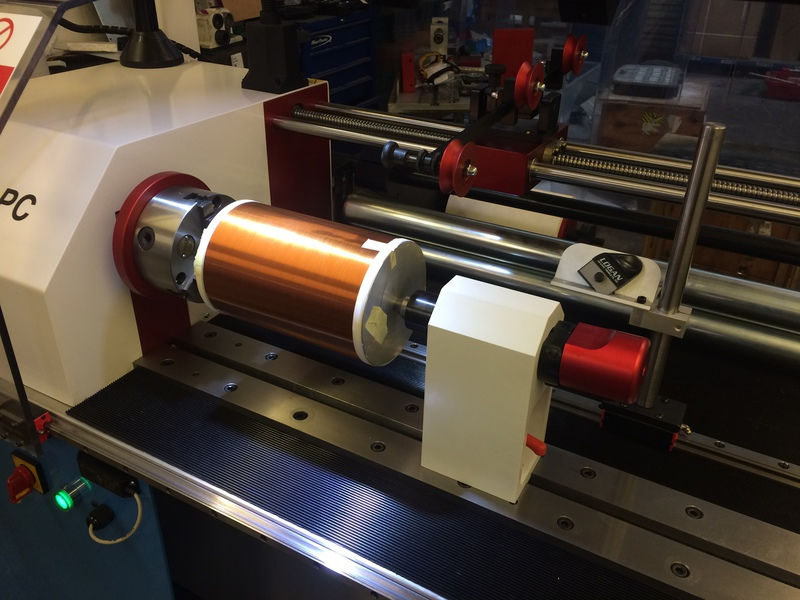

The WT 300 is a floor standing coil winding machine specifically designed for the production of small to medium size coils and transformers. It is made of a high quality aluminium framework and robust mechanical parts. The main spindle is driven by a 1.5kW servo motor, via a 2 step pulley to give a good range of speeds and torques. The wire guide carriage is mounted on precision hardened steel rails with linear bearing guides and is driven by a 400W servo motor and precision ball screw. An encoder on the main spindle provides high performance and exact movement of the wire guide.
Browse our video gallery below
WT300 Rebar Winding
The WT 300 machine is supplied with the following parts as standard:
-
Aluminium extrusion table and machined aluminium bed
-
Headstock including winding spindle, faceplate & 3 jaw chuck or ER32 collet
-
Push button control panel
-
Traverse unit including adjustable wire
-
guide mounting frame, 1x wire guide arm
-
Interlocking safety guard
-
PCWM control system & PC with touch screen
-
Push button control panel
-
Foot pedal incorporating pedals for
-
speed control slow speed and brake release
-
Tailstock support with quick release action
Coil Diameter: 300 mm
Winding Length: 350 mm
Centre Distance: 380 mm
Max Load: 150 KG
Pitch Range: 0.001 to 150.00
